Details:

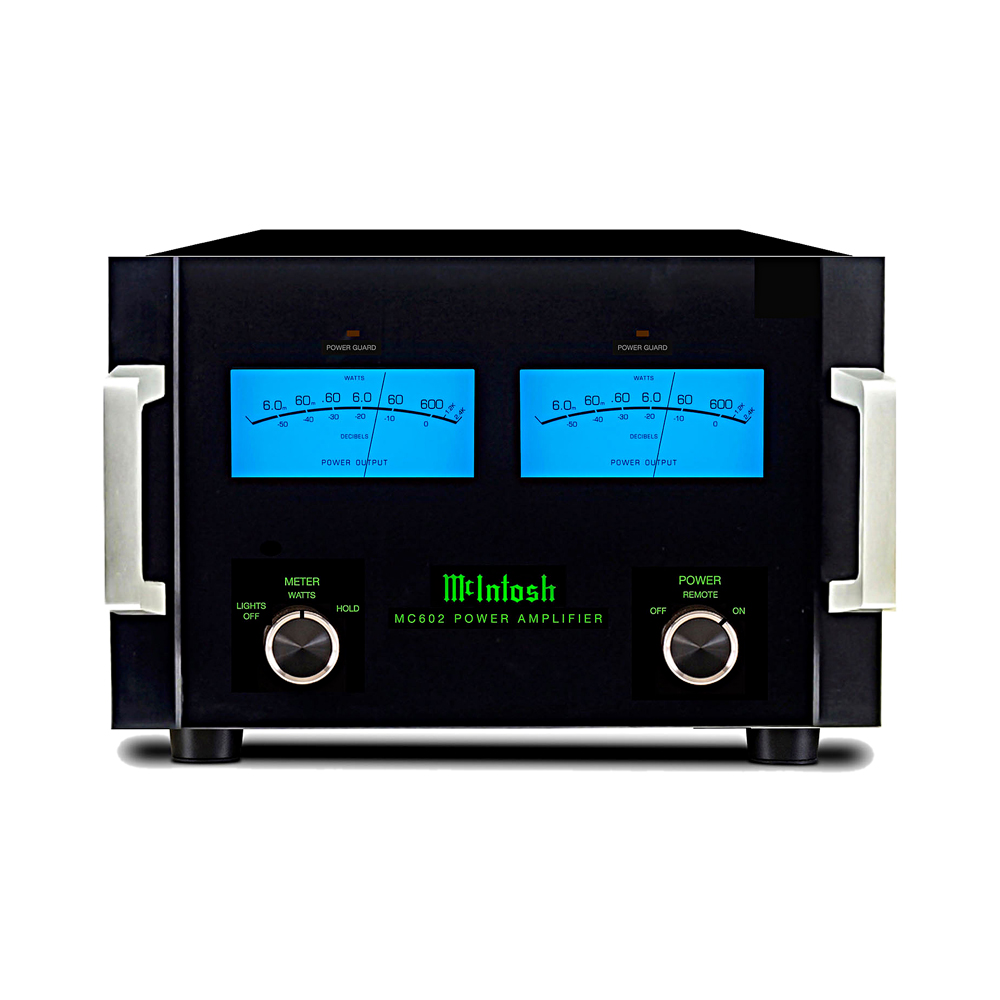

The McIntosh MC602 is a high-power, two-channel solid-state amplifier, delivering 600 watts per channel into 2, 4, or 8-ohm loads. Known for its immense power, it features fully balanced circuitry, proprietary Autoformers for consistent power, and a 155 lb chassis with iconic blue wattmeters.
Features and Benefits:
- Power Output:Â 600 Watts RMS per channel (both channels driven).
- Design:Â Dual-channel, fully balanced from input to output.
- Output Transformers (Autoformers):Â Allows maximum power to be delivered regardless of speaker impedance (2, 4, or 8 ohms).
- Distortion:Â Less than 0.005%.
- Construction:Â Weighs 155 lbs (70.3 kg). Includes a 1.5 kVA toroidal transformer.

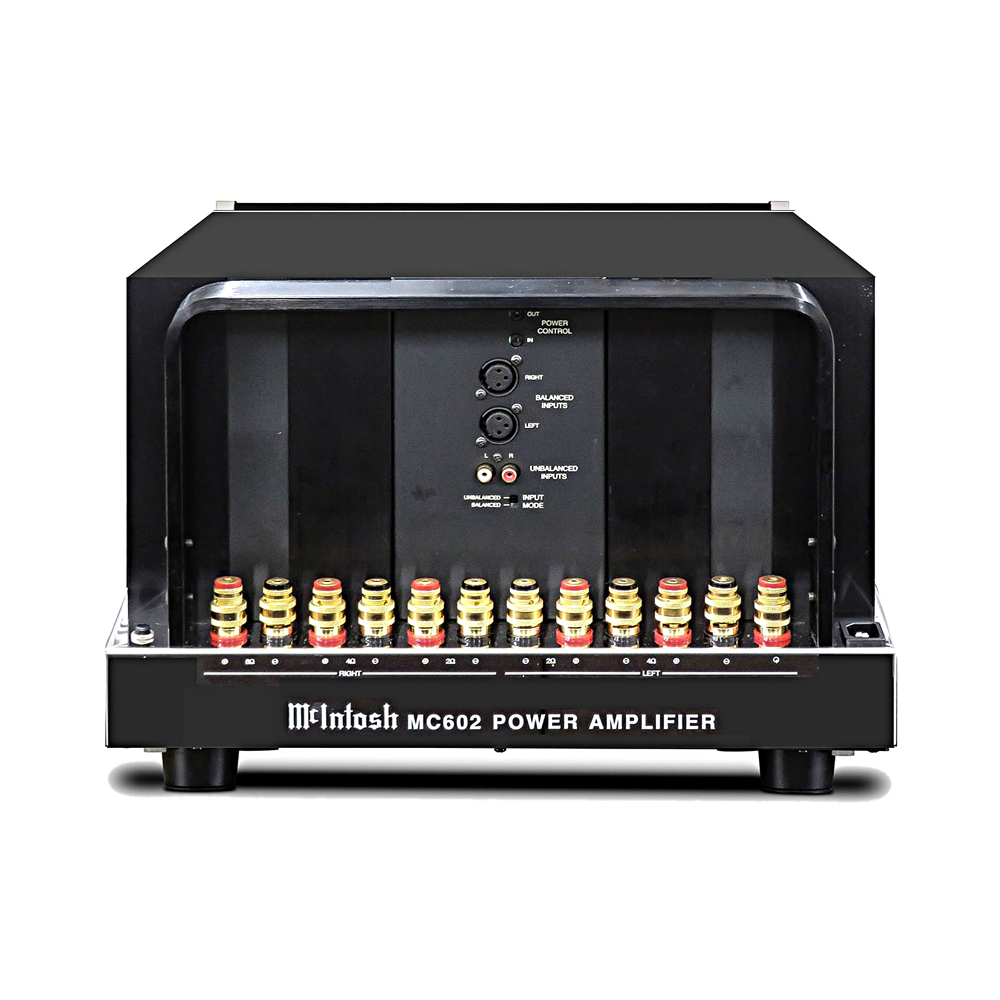

- Inputs:Â Balanced (XLR) and Unbalanced (RCA).
- Metering:Â Illuminated blue wattmeters with output tracking and hold.
- Protection:Â Features Power Guard to prevent clipping and circuit breakers..

Documents & Resources:
owner's manual







ftinternationalbd –
The McIntosh MC602 is a legendary, massive 600-watt-per-channel stereo amplifier, often cited as one of the most powerful and “biggest” stereo amps ever produced by the company. It is praised for driving almost any speaker to concert-level volumes with exceptional, effortless, and refined authority.
